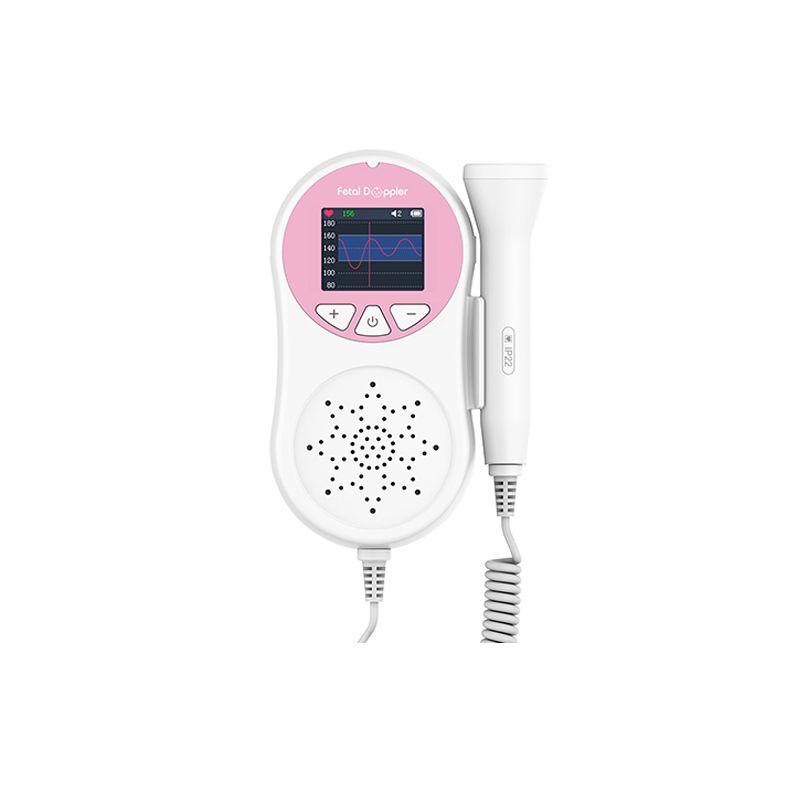

Pocket Fetal Doppler 10B
CONTEC10B Pocket Fetal Doppler adopts Doppler technology in designing, it is a hand-held fetal heart rate detection device. Measured FHR value and waveform are displayed on the LCD screen. With easy and convenient operation, it can be used in hospital, clinic for daily self-check by pregnant woman, realizing early monitoring and care for life
Functions:
Beautiful appearance, easy to operate
Magnetic probe, compact design, convenient to use
Color display screen
Digits/Curve display
Battery level indication
Auto shutdown after no signal inputting for 60s
High sensitive Doppler probe, fetal heart sound can be heard clearly for pregnancy more than 12 weeks
Two sound output modes: built-in speaker and external headphone
Specifications:
Dimensions: 151mm(L)x96mm(W)x33mm(H)
Weight: about 207g ( with Batteries)
Performance:
Safety classification: internally powered equipment, type CF applied part
Display: 1.77" LCD display
FHR measurement & display range: 50BPM-240 BPM (BPM: beats per minute)
Resolution: 1BPM
Accuracy: +- 2BPM
Rated working voltage: DC3 V
Battery Type: 2 x 1.5V batteries (AA LR6)
Probe:
Nominal Frequency: 2.0MHz
Working Frequency: 2.0MHz +-10%
Negative Peak Sound Pressure: p_<1MPa
Output Beam Intensity: 1ob <20mW/cm2
Spatial-peak Temporal-average Derived Intensity: lspta<100mW/cm2
Ultrasonic Output Power: P< 20Mw
Working Mode: Continuous wave Doppler
Effective Radiating Area of Transducer:<208mm2
