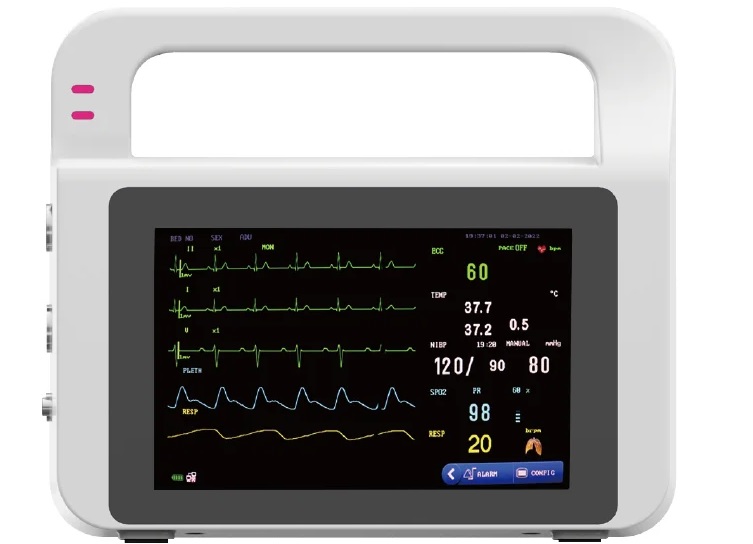

Patient Monitor E5
Features:
WIFI connection APP can be realized to achieve intelligent interconnection
4 hours of standby time and 3 hours of working time
Application Range: Suitable for nurses to check the room, doctors out, ambulance
Display: 5-inch inch color TFT LCD display
Dimension and Weight
Product Size：168*143.3*66.5mm
Product weight：825g
TECHNICAL SPECIFICATIONS
Quality Standards and Classification
- Anti-electroshock degree: Class Ⅰ equipment (internal power supply)
- Protection degree of fluid intake: IPX1
working environment conditions:
| a) | Ambient temperature range: | +5ºC～40 ºC |
| b) | Relative humidity range: | 15%～80%, no condensation |
| c) | Atmospheric pressure range: | 60～107kPa |
Shipping and storage conditions
| a) | Ambient temperature: | -20ºC~+55ºC |
| b) | Relative humidity range: | 10%～95% |
| c) | Atmospheric pressure range: | 16kPa～107kPa |
Electrical Specifications
| a) | Input: | -20ºC~+55ºC |
| b) | Power Frequency: | 10%～95% |
| c) | Maximum Input Power: | 16kPa～107kPa |
| d) | Fuse Specification: | 2AL 16V |
| e) | Working Method: | Continuous operation |
| f) | Internal Lithium Battery: | DC 7.4V, not less than 2000mAh |
Smart Solution
- Wireless integration with the central monitoring
- station Dynamic trends provide up to 240 hours of useful information for viewing
- 8 tracks per monitor, 16 monitors on one screen
- View up to 32 beds in real time on one platform
- View and manage patient data anytime, anywhere in and before the hospital
Accessories:
- Spo2 sensor & extend cable 1pcs
- ECG cable 1pcs
- Cuff &Tube 1pcs
- Temp probe
- Power Cable Line 1pcs
- Ground Line 1pcs
- User Manual 1pcs
