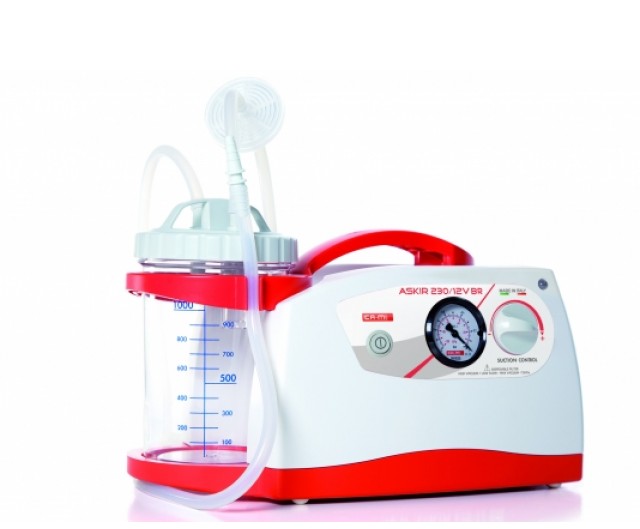

Suction Machine New Askir 230/12V BR 1L
New ASKIR 230 12V BR is an electric suction unit for aspiration of body, oral, nasal and tracheal fluids, both for adults and for children.
Three power supplies
AC/DC supply, included.
Internal supply (Battery PB 12V 4A).
Supply with car charger (12V) approved for continuous use.
The device features acoustic and visual indicators (LED) for battery discharge. Besides, it features an indicator and a vacuum regulator.
Scope of application
Patient transfer
Tracheotomy
Home care
Emergency room
Technical Characteristics:
Supply 100-240V~ - 50/60 HZ for AC/DC adapter 14V 4A.
Car charger: 12V 4A.
Internal battery: Pb 12V 4A
Leds number: 1
Battery life: 80 minutes
Charging time: 240 minutes
Maximum suction - adjustable: -0.75 Bar / -75KPa / -563 mmHg
Maximum suction flow: 16L/ minute
Noise level: 63.0 dB
Power input: 50 VA
Fuse: 1 x 630 mA 250V
Operation: Continuous use
Weight: 3.5 Kg
Size: 350 x 210 x 180 mm
Protection degree: IP21
Accesories included:
Autoclavable container with overflow valve.
Autoclavable silicone tubes 6x10 + Cone connector Ø 09/08/10 mm.
Antibacterial and hydrophobic filter.
Cannula CH20.
Universal power supply.
Car charger 12V.
